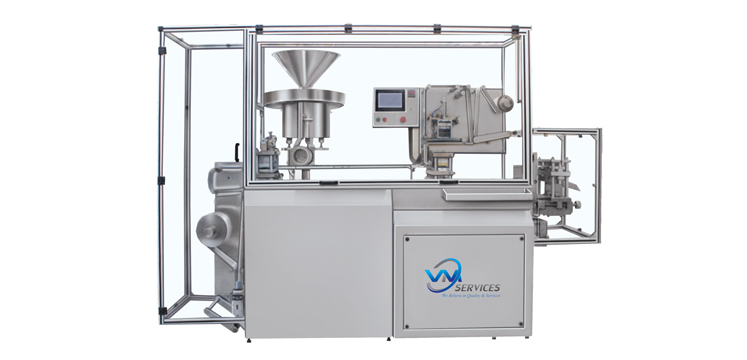

Alu Alu Blister Pack Machine

Special Features

  • Up to 1lacs Tablets/ Shift
  • No micro-stops
  • One user interface for all components
  • Best built quality
  • Rigid design
  • GMP Standards satisfying with all stainless steel cladding
  • Hi-speed with smoothness & noiseless performance

Optional Features

  • Perforated
  • Embossing
  • All in one package (ALU-ALU-machine with PVC attachments)
  • SP-Feeding System
  • Acrylic & Polycarbonate guards

Pulse Features

  • Packing Speed : : Calibrated Speed of 30 Strokes/minute in 140mm format area machine
  • Web Indexing : Servo based system
  • Feeding : Dropping system with pneumatic technology
  • Man Machine Interface : Ergonomically and user friendly touch screen operation
  • Scrap Handling : Scrap winder

Technical Specification

Description (ALU ALU) Cold Forming (PVC ALU) Thermo Forming
Base Foil Width Aluminum 140mm PVC/PVDC/ACLAR 140mm
Base Foil Thickness 0.13 - 0.15mm 0.20 - 0.40mm
Bsae Foil Reel Diameter 440 mm Max 440 mm Max
Sealing Foil Width Aluminum 140 mm Aluminum 140 mm
Sealing Foil Thickness 0.025 - 0.035mm 0.025 - 0.035mm
Sealing Foil Reel Diameter 210mm Max 210mm Max
Max. Packet Forming Area 85 x 140mm 85 x 140mm
Max. Forming Depth 8-10mm 8-10mm
Output 30 Strokes per Minute
Approx. Weight of Machine 1300 kg.
Machine Size (L X W X H) 2570 x 800 x 1970mm
Power Requirement 1 Phase, 230 Volts
Water Chiller Requirement 80litr/hour. Temperature 150C + 20C Pressure 2.5 bar (Max)
Additional Safety Air Dryer, Voltage Stabilizer
Compressed Air Requirement 24CFM Dry Air at constant pressure 80kg/cm2
